Product Overview

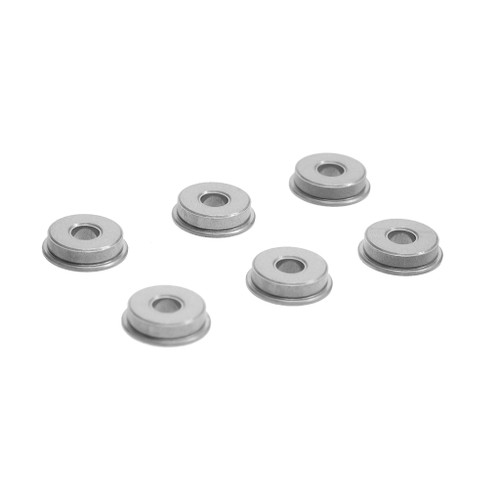

This high precision 8mm bearing for your gearbox shell reduces friction on your gears thus keeping your gearset stable, and aligned for maximum performance.
- Made in Japan - precision cut, high strength
- Perfect for fine tuning your build
The bearings come with a thickness of 2.5mm to prevent interference with your selector plate and reduces the need to modify your gearbox shell. Additionally, due to the shallow thickness of the bearings, you can fine tune your shimming even more for a precise fit.
Included: 8mm Bearings x6
Dimensions:
- Diameter: 8mm
- Thickness: 2.5mm
Compatibility: 8mm AEGs
- CM16 Series
- GC16 Series
- ARP9
- ARP556
- Fire Hawk
- Other 8mm AEGs
※Please be aware that not all models are 8mm, such as the (Fire Hawk HC5).
When installing the 8mm Bearings, please take care when installing and press fit the bearings to the gearbox shell. Utilize φ2.98 (Bearing-use) Gearbox Centering Pins, to ensure an even and aligned fit. An aligned fit is important to reduce the stress on your gears as well as maximizing efficiency.
