Product Overview

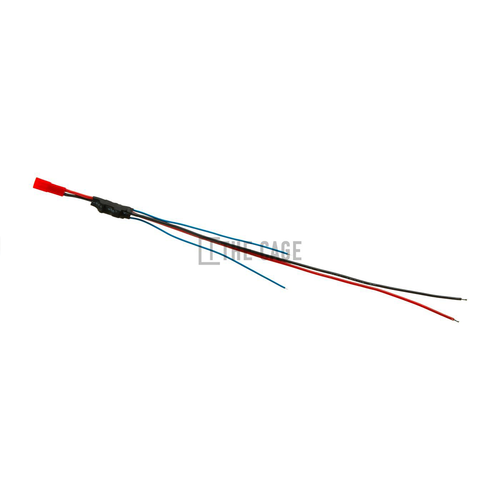

Optimise your AEG's rate of fire and battery capacity with the JeffTron MOSFET II, a professional-grade MOSFET.
Features
- Comes with presoldered wires for faster installation, simply cut to required length and attach included connectors
- Enhances trigger response and rate of fire
- Improves battery efficiency
- Reduces stress and wear on the gearbox
- Conformal coated for water resistance
- No current consumption when idle
- Eliminates arcing between switch contacts
Specifications
- Maximum spring rating: M210
- Maximum battery voltage: 17V
- Current limit: Semi-auto 150A / Auto 50A
- Maximum Power wire gauge: AWG16
- Maximum Signal wire gauge: AWG20
Installation notes
- Installation requires delicate soldering. Seek a professional if you are not confident in performing the work. We accept no liability for any issues arising from improper installation.
- A high torque motor is recommended to utilise the active braking feature.
- A functional cut-off lever, selector plate, anti-reversal latch, trigger, and trigger block are required for correct functionality.
