Product Overview

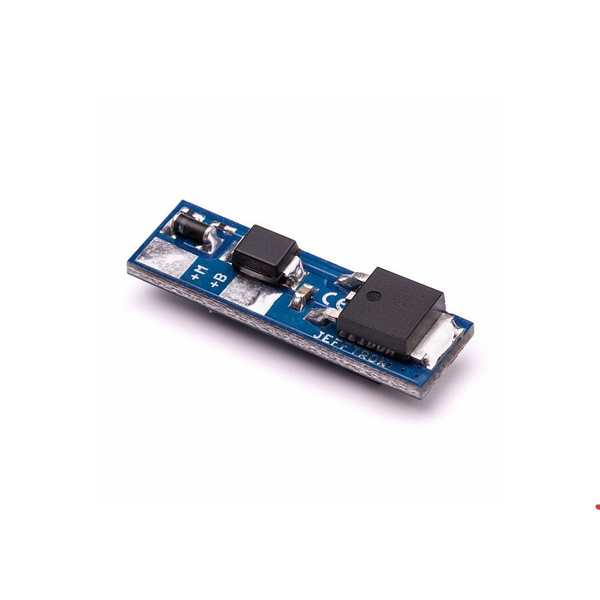

Upgrade your AEG for peak performance with the JeffTron Micro Active Brake II, a professional-grade MOSFET featuring motor braking technology.
This device is fitted within the standard wiring loom to ensure a full cycle with every trigger pull, eliminating jams when firing semi-auto. The Active Braking feature briefly reverses the current through the motor bringing it to a faster more precise stop. The reduced size of the board makes it easy to fit without compromising battery space.
Features
- Comes without wiring
- Enhances trigger response and rate of fire
- Improves battery efficiency
- Reduces stress and wear on the gearbox
- Conformal coated for water resistance
- No current consumption when idle
- Eliminates arcing between switch contacts
Specifications
- Maximum spring rating: M160
- Maximum battery voltage: 17V
- Current limit: Semi-auto 75A / Auto 25A
- Maximum Power wire gauge: AWG16
- Maximum Signal wire gauge: AWG20
- Installation notes
Installation Notes
- Installation requires delicate soldering. Seek a professional if you are not confident in performing the work. We accept no liability for any issues arising from improper installation.
- A high torque motor is recommended to utilise the active braking feature.
- A functional cut-off lever, selector plate, anti-reversal latch, trigger, and trigger block are required for correct functionality.
