Product Overview

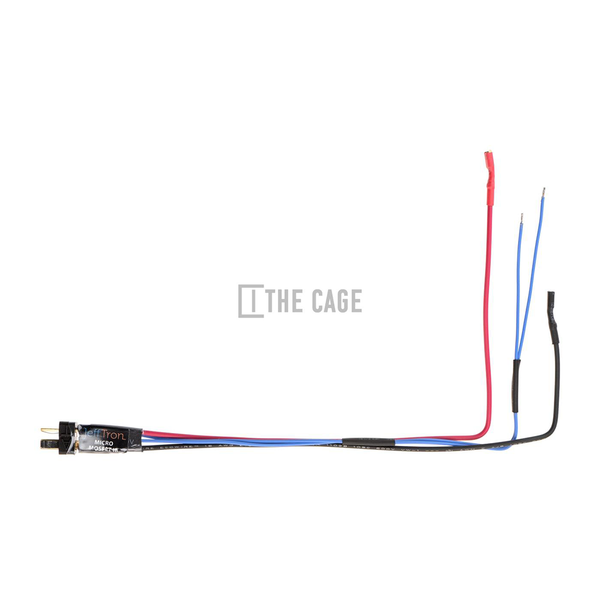

The Jefftron AK Mosfet is designed for AK AEGs which house the battery above the gearbox (under the dust cover). All the electronics are integrated into a deans style T connector to minimise the size of the system.
- Improves rate of fire
- Improves battery life
- Eliminates arcing on mechanical trigger contacts
- No current consumption when idle
The AK Mosfet features a Jefftron Micro Mosfet III with a full wiring harness for quick installation into a compatible V3 gearbox.
Specifications
- Maximum spring rating: M170
- Maximum input voltage: 17V
- Maximum current: 35A (90A in semi-auto)
- Power wire: AWG16 MPPE insulated
- Signal wire: AWG22 MPPE insulated
- Moisture protection: conformal coating
- Gearbox requirements: V3 with a functional cut-off lever, selector plate, anti-reversal latch, trigger and trigger block
Compatibility
Most V3 gearboxes where the battery is housed above the gearbox.
WARNING
This product should be installed by a competent technician able to solder and disassemble an airsoft gun.
