Prometheus ARES AMOEBA EFCS Custom Adjustable Trigger

£42.00

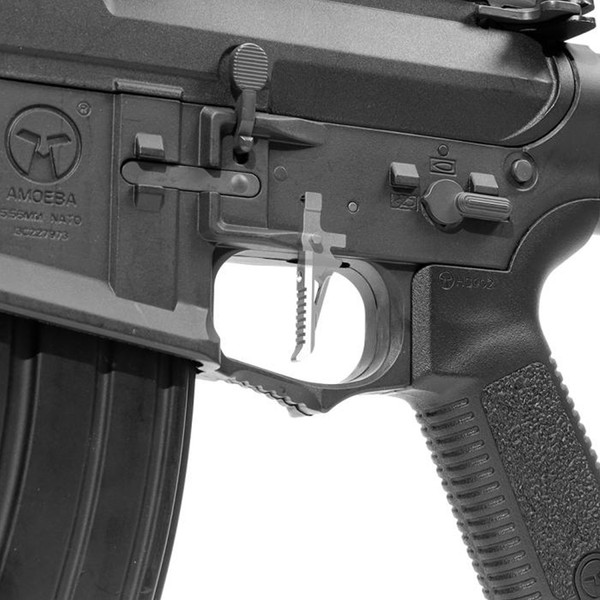

Built for the Ares Amoeba EFCS series of rifles, this new custom trigger is highly adjustable and will significantly improve your trigger response. Using two grub screws, you can adjust both the trigger pull length or response, as well as the trigger's stroke/angle. The stroke can be adjusted from outside of the gearbox at anytime, while the trigger pull adjustment is made during installation. This makes for a much easier method of tuning your rifle's trigger to your taste. The serrated straight trigger pad also allows for maximum grip and rapid semi-auto fire.

  • Fully adjustable trigger pull length and trigger response
  • Serrated straight trigger for easier grip and rapid semi-auto fire
  • Material: aluminium alloy


Installation notes

  1. In order to install and adjust your response and stroke lengths, first loosen grub screw A, and then install it into the gearbox. Gradually adjust grub screw A to desired trigger response between grub screw A and the trigger switch. (CAUTION: Before fully reassembling the gearbox, please check to see if the safety mechanism engages, if you shorten the trigger response too much, the safety will cease to function.)
  2. After the gearbox is reassembled and placed back into the receiver of your Ares Amoeba, adjust grub screw B to adjust the angle/stroke of the trigger. There is a small screw hole that be accessed using an allen key from the outside of the gearbox while the gearbox is installed. (CAUTION: Over tightening grub screw B can prevent the trigger from engaging or releasing the trigger switch fully.)



※An L-shaped allen wrench (1.27mm) is required to adjust the trigger stroke from the outside of the gearbox.
※It is advised that you use medium-strength thread lock to keep the adjustment screws from coming loose.
※You can utilize a shim set for additional horizontal adjustment and to reduce play in the trigger.

■CAUTION:
※The picture shown is a product sample, the actual colour and specification may vary.
※Gun and other parts sold separately.
※Colour may vary batch to batch.

Full Description
Colour *
Qty
  • Description

    Built for the Ares Amoeba EFCS series of rifles, this new custom trigger is highly adjustable and will significantly improve your trigger response. Using two grub screws, you can adjust both the trigger pull length or response, as well as the trigger's stroke/angle. The stroke can be adjusted from outside of the gearbox at anytime, while the trigger pull adjustment is made during installation. This makes for a much easier method of tuning your rifle's trigger to your taste. The serrated straight trigger pad also allows for maximum grip and rapid semi-auto fire.

    • Fully adjustable trigger pull length and trigger response
    • Serrated straight trigger for easier grip and rapid semi-auto fire
    • Material: aluminium alloy


    Installation notes

    1. In order to install and adjust your response and stroke lengths, first loosen grub screw A, and then install it into the gearbox. Gradually adjust grub screw A to desired trigger response between grub screw A and the trigger switch. (CAUTION: Before fully reassembling the gearbox, please check to see if the safety mechanism engages, if you shorten the trigger response too much, the safety will cease to function.)
    2. After the gearbox is reassembled and placed back into the receiver of your Ares Amoeba, adjust grub screw B to adjust the angle/stroke of the trigger. There is a small screw hole that be accessed using an allen key from the outside of the gearbox while the gearbox is installed. (CAUTION: Over tightening grub screw B can prevent the trigger from engaging or releasing the trigger switch fully.)



    ※An L-shaped allen wrench (1.27mm) is required to adjust the trigger stroke from the outside of the gearbox.
    ※It is advised that you use medium-strength thread lock to keep the adjustment screws from coming loose.
    ※You can utilize a shim set for additional horizontal adjustment and to reduce play in the trigger.

    ■CAUTION:
    ※The picture shown is a product sample, the actual colour and specification may vary.
    ※Gun and other parts sold separately.
    ※Colour may vary batch to batch.

  • Reviews

    Reviews

    Be the first to

  • Details

    Details

    Current Stock:
    Width: 7.00 (cm)
    Height: 14.00 (cm)
    Depth: 1.50 (cm)
